WENYAO 2022 Latest Intelligent 1 Chute Grain Seeds Nuts Tea Color Sorter Separator
Color sorting machine working principle:
Input moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras . Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the ejected products out of the conforming ones, which naturally reach their discharging hopper.
Technical Parameters:
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 300-1000kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.75kw |
| Power Voltage | 180-240V/50Hz/60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 0.2-0.6M3/Min |
| Weight | 280kg |
| Diamension(L*W*H) | 780*1527*1543mm |
Wenyao color sorting machine advantage:
※ High speed, resolution ratio CCD camera, high speed line scan.
※ High speed, resolution ratio super clear imaging,color reduction well, no distortion.
※ High luminance LED resource, low power consumption, long life, reliable.※High frequency solenoid valve , special for color sorting. high sorting accuracy.
Color sorting machine application :
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Vegetable and fruits:
Such as: Dried Garlic ,Onion, Olive,Coffee Cherry,Jujube ,Dried fish and shrimp
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Packing delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.Package size will depend on each model size.
Delivery Details:Within 15 - 20 days after received deposit.
Our service:
Before sale:no whether where you are,no whether when it is,we will provide help you to know our machine service within 7*24h.
After Sale :We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
Sorting effects :

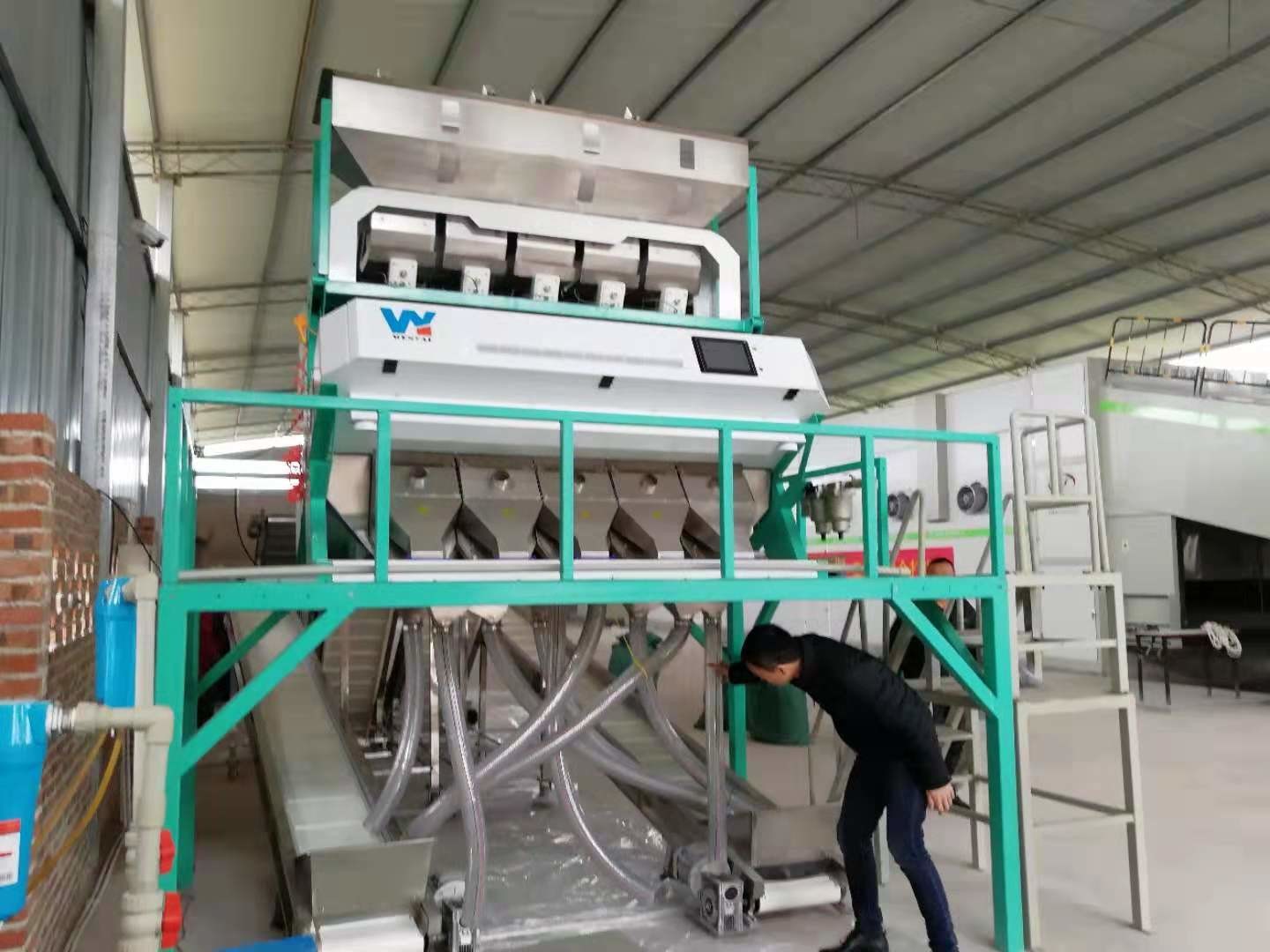

Customers' Sites:
