Champion Popular and Factory Price Multifunction Color Selector Machinery
Technical Parameters:
| MODEL | WYCS3-192 |
| Chutes/Channels | 3-192 |
| Throughput(t/h) | 500 kg /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1600w |
| Power Voltage | 180-240V/50Hz/60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 800-1800 L/Min |
| Weight | 600kg |
| Dimension(L*W*H) | 1620*1535*1832mm |
Do You Know Color Sorter Machine Working Flow?
Raw materials are put into the machine from its material hopper on the top, vibrated by vibratory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber.
Machines Working Principle:
Machines

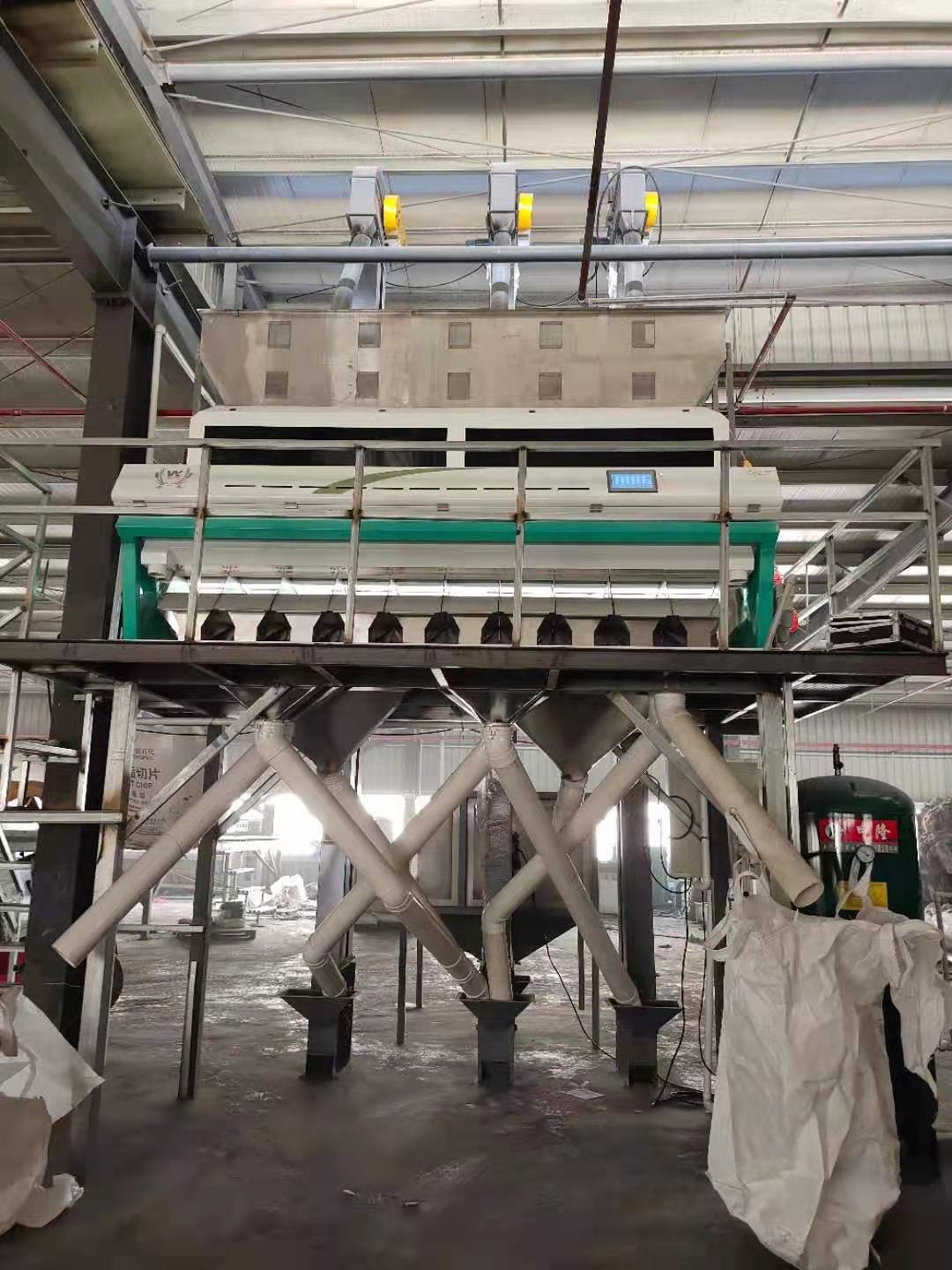

Machine Display:
Examples of color sorting:
Why choose US?
1. Over 15years experiences focus on color sorter. We have the strength give better service and price to you.
2. Overseas Service Station: We have service station, cooperate reseller more than 40 countries. We can meet your requirements on testing, installation and after sales service.
3. OEM/ODM is Supported: We have a strong R&G team. We can research and development suitable color sorter for you.
4. Quality Process Assurance: We pass CE, RoHS and ISO quality management system, each process of production are under strictly standard.
5. Shipping Guarantee: We have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.
6. After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage)
7. Sales team: Our professional sales team is fluent in English, Russian, Chinese , Spanish and Japanese. Can communicate better with customers.
Package and Delivery :
Our Exhibition :
Contact US:
