High Capacity Peanut Color Sorter Nuts Color Sorter Ccd Optical Color Sorter
Wenyao Color Sorter Working Principle :
Color 5400CC0 sensor fifth Generation ---Pixel is higher,micro color dfference identification ability is stronger. High-speed FPGA processor---Greatly enhance the speed and efficiency for processing huge amounts of data. High-end LED lighting source system---High purity for spectrum,high stability for power supply and long life light-emitting. Intelligent shape sorting system---Special shape recognition algorithm for ensuring a high efficiency. Rich fault self-checking function---Automatic identification&warning in time. Perfect interactive system---Resolution is higher and operation is more convenient.
Technical Parameters:
| Details as following | | MODEL | WYCS1-64 | | Chutes(channels) | 1(64) | | Sorting accuracy(%) | ≥99.9 | | Carryover rate (bad:good) | ≥12:1 | | Output(kg/h) | 500-800 | | Voltage | 180-240V/50Hz/60hz | | Power supply(kw) | 0.9 | | Work Air Pressure(Mpa) | 0.2-0.3 | | Air consumption(L/min) | 200-600 | | Air supply(Mpa) | 0.6--0.8 | | Dimension(L*W*H) mm | 900*1520*1350 | | Weight(kgs) | 280 | | Package | plywood case | | Package Size mm | 1040*1660*1540 | |
Features:
►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
Working principle
1. The material enters the machine from the upper hopper, through the vibration of the supply
device (vibration feeder vibration), the selected material falls along the supply distribution
tank (chute).
2 The material passes through the upper end of the chute source and accelerates along the chute to enter the sorting box
3. After entering the sorting box, between the CCD of the image processing sensor and the
background device, using the role of the light source, the CCD receives the known synthetic
light signal from the selected material, so that the system generates an output signal,
performs amplification processing, and transmits to FPGA + ARM operation processing system, and transfer to the control system
4. The preferred materials continue to fall into the completion chamber of the hopper and enter
the completion tank, and the materials are selected to achieve the purpose of selection.
Our Service:
1. We not only provide you machines but also offer the professional technical guidance and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except Two years quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.
FAQ
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the guarantee period?
Two year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer
should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local
transportation and security when the Engineer arrived.
Sorting performance :

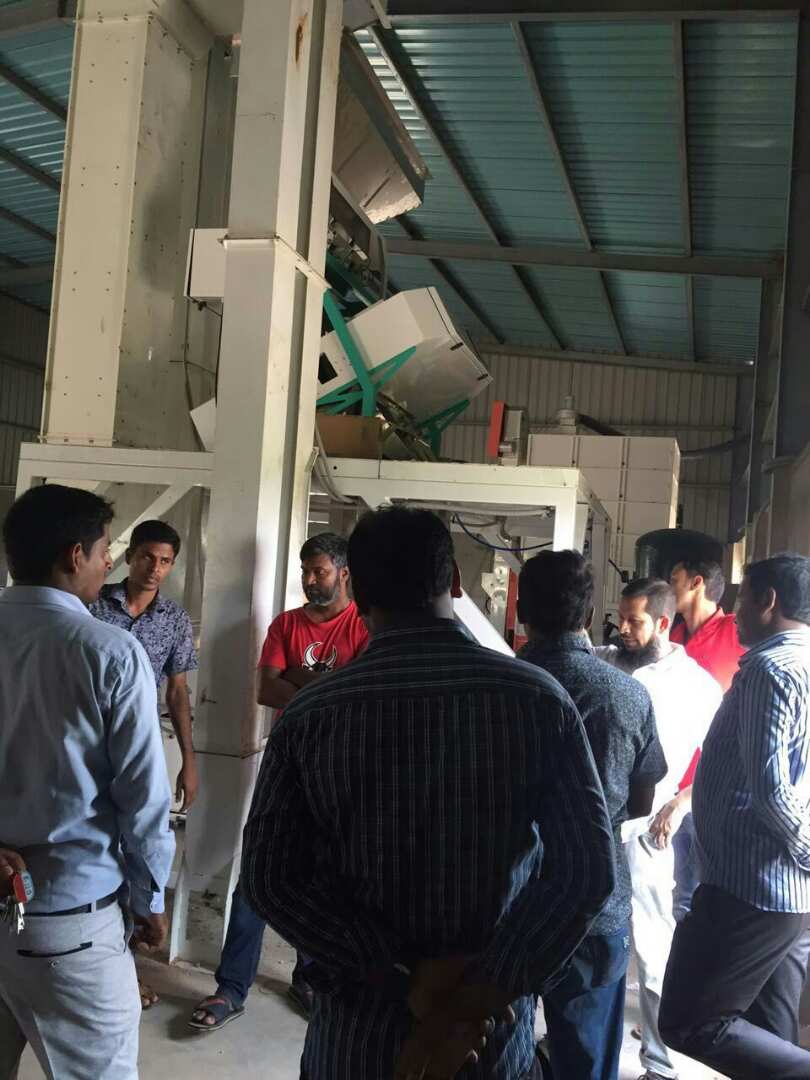

Our Custom's site:
