Leading World Green And Black Tea Color Sorter Machine For Remove Tea Stems In Tea Processing Plant
Product description:
*Latest UHD imaging and analysis technology,high-speed processing,accurate identification
*High level AI self-learning function,one-key automation,user friendly interface,easy operation
*High and specification ensures high stability,with high sorting accuracy,small carry over and low energy
*Small and portable,saving space and delivery cost,small machine but super function
*Imported ejectors,much smaller air consumption,and much better carry over,esp.good for small materials like quinoa,China,sesame....
*Option:Remote control by smart terminals like cellphone ,can realize the off-site controls of the accuracy,production capacity and halt of the machines
*Simple Effective-installation&Start-up&Commissioning services;remote teaching and guidance via live video online through internet to worldwide
Working principle of Color Sorter :
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Technical parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.3M3/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
Packing delivery:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery time:
Within 15 - 20 days after received the 30% deposit.
What you can choose from us?
---Advanced equipments, good quality
---Professional skills, all-related services
---High quality and efficiency technology
---Complete production line, quick delivery
---The biggest grain and oil machine manufacturer and exporter in China
---Exporting to more than 30 countries and regions
FAQ:
1.Q:How long about the guarantee period?
Two years. And we will supply lifelong software upgrade services for our customers.
2.Q:Will you accept L/C as payment?
L/C ,T/T is OK.
3.Q:How about engineers service oversea?
Our engineers could go abroad services when necessary.
4.How about the sample machines for testing?
Sample sending for testing is welcomed. Or you send these three photos, the raw material, good material (which is you want), bad material (which is you want to discard). We send our video to you.
5.Q:How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
6.Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need.
Our service:
Before sales services
We will help you know about our color sorter,meets your special requirement according to actual condition.
After sales services
1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for one year(except the wearing spare parts);
5.Provide 7*24 hours consultation and urgent service for users.

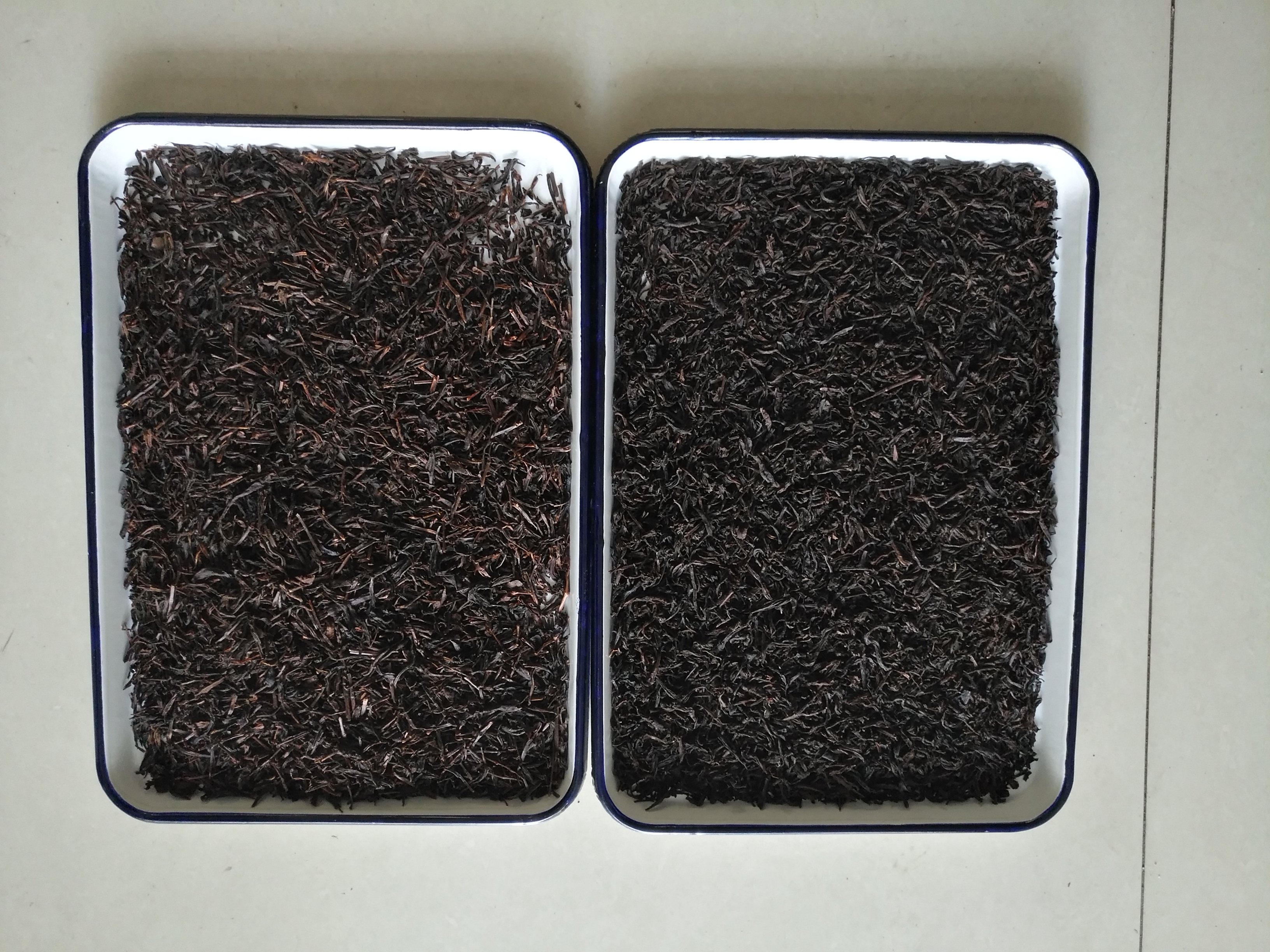

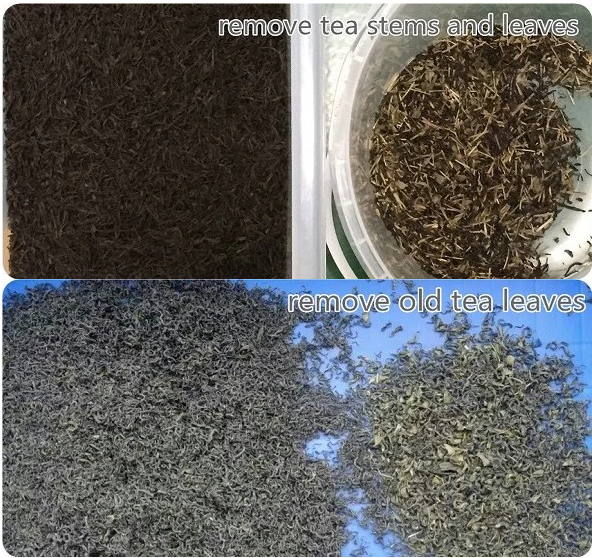

Sorting effects of tea:
Other Application Fields:
Custom's site:
Coutact us:
Product Tags:
|
|
UHD Imaging Tea Color Sorter Machine 32 Channels 1 Chute Images
|
