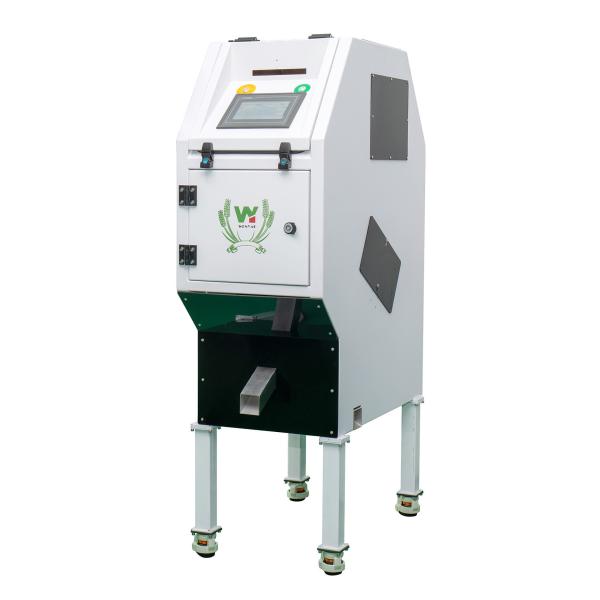

Multi-Function Color Sorter Corn Flower Sorting Grading Machine For Flower Petal With High Precision
Product Description:
color sorting machine is an equipment that automatically sorts out different color particles in granular materials by photoelectric technology according to the difference of material color.
The selected material enters the machine from the hopper at the top, passes through the vibration of the vibrator device, slides down the channel, accelerates its descent into the observation area of the sorting room, and passes between the sensor and the background plate. Under the action of the light source, according to the intensity and color change of the light, the system generates output signals to drive the solenoid valve to blow out the different color particles into the waste material cavity of the receiving hopper, and the good selected material continue to fall into the finished product cavity of the receiving hopper, so as to achieve the purpose of selection.
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.3M3/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
Features:
1.Remote interconnection: Easy connection of touch screen and mobile devices, intelligent control to enjoy the wisdom of life.
2.Remote diagnosis: Start-up self checking of system can achieve real-time monitoring of machine components, automatically judgement and troubleshooting to ensure the normal operation of color sorter.
3.Remote upgrade: Intelligent self checking system realizes one-key system upgrade and provides the best operation experience
4.Remote training: A efficient and convenient real-time interactive training system developed independently, creating non-distance service for users.
Application Fields:
This product can be used in agriculture, food, oil, chemical, medicine and other industries, especially suitable for tea, sesame, beans, seeds, raisins, yellow rice, glass, plastic, cinder, ore, peanuts, cottonseed, wolfberry, prickly ash and other color.
Packing delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.Package size will depend on each model size.
Delivery Details:Within 15 - 20 days after received deposit.
Our service:
Before sale:no whether where you are,no whether when it is,we will provide help you to know our machine service within 7*24h.
After Sale :We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
Sorting effects of corn flower petal:
