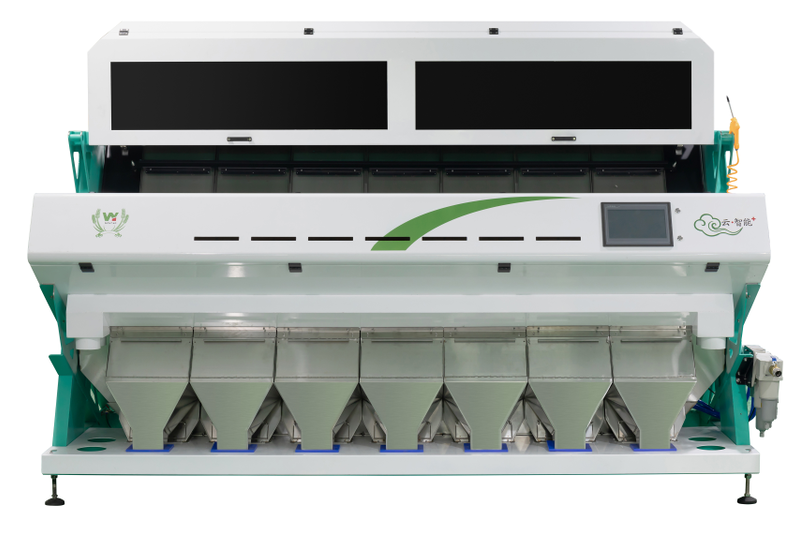

WIFI Remote Control System Sunflower Seed Color Sorter Machine For Separating Bad Sunflower Seeds
1.Color Sorter Machine Working Flow
Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .
Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.
What is a CCD in a camera?
Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.
2.Technical Parameters:
| MODEL | WYCS7-448 |
| Chutes/Channels | 7 / 448 |
| Throughput(T/h) | 5T/h-7T/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 3.9kw |
| Power Voltage | 180-240V/50-60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.8M3/Min |
| Weight | 1350kg |
| Diamension(L*W*H) | 2905*1540*1852mm |
3.Machine Features:
Wenyao color sorter Features:
※ High speed, resolution ratio CCD camera, high speed line scan.
※ High speed, resolution ratio super clear imaging,color reduction well, no distortion.
※ High luminance LED resource, low power consumption, long life, reliable.
※ High frequency solenoid valve , special for color sorting. high sorting accuracy.
4.Examples of Color Sorting Examples
Wenyao multifunction color sorter application
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and fruits:
Such as: Dried Garlic ,Onion, Olive,Coffee Cherry,Jujube ,Dried fish and shrimp
5.Our Service:
A:For software:We have installed WIFI remote control system on machine,Once machine arrived in your local we will connect with machine touch screen provide technical assistance from Chinese factory.
B:For hardware:We will supply you the spare parts ship together with machine,In case you face hardware problems,we will guide you how to repair by live videos.
6.Packing and Delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received deposit.
7.Contact US
Product Tags:
|
|
WENYAO Sunflower Seed Color Sorter , 7T/h Seed Processing Plant Machinery Images
|
