China Hefei Wenyao High Quality Toshiba Camera 3 ton/h Walnut Macadamia Peanut Color Sorting Machine CE WIFI Remote
Color sorter machine which used for separating the bad grain from the raw material through the color difference between the rejection and finished products. Wenyao color sorter adopting 5400 pixel high resolution CCD camera, advanced image analysis and processing technology, long-life high-efficiency easy maintenance ejector as well as excellent optical system.
Technical Parameters
| MODEL | WYCS3-192 |
| Chutes/Channels | 3/192 |
| Throughput(t/h) | 1-4 |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.6kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 0.8-1.8M3/Min |
| Weight | 600kg |
| Diamension(L*W*H) | 1620*1535*1832mm |
Product Features
1. Remote interconnection: Easy connection of touch screen and mobile devices, intelligent control to enjoy the wisdom of life.
2. Remote diagnosis: Start-up self checking of system can achieve real-time monitoring of machine components, automatically judgement and troubleshooting to ensure the normal operation of color sorter.
3. Remote upgrade: Intelligent self checking system realizes one-key system upgrade and provides the best operation experience
4. Remote training: A efficient and convenient real-time interactive training system developed independently, creating non-distance service for users.
Device Features
1. Camera:use high standard to promise high precision work
International well-known brand customized lens, high-speed of scanning, the highest resolution comes to 0.02 mm2.
2. High-frequency Solenoid Valve:leading in China
High working efficiency and high quality and high precision solenoid valve, with consistency of near zero error, service life more than 1 billion times.
3. Intelligent Image Processing Algorithm
The combination of colors and shapes of intelligent algorithm, precise professional sorting solutions
4. Customized Lighting System:import purchasing
Advanced LED optical design system, Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life. LED lighting system with thermal dissipation.
5. Data Transmission System:high-speed and stable
The COAX interface:High anti-jamming, high transmission speed, high stability
6. Chip:innovative ultra high-speed processing
Based on SOC platform architecture;Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.
7. Feed Trough:
Special anodization treatment process ensures the required production in line with the international first-class level. Cascading flat plate and narrow chute channel can be outfitted to sort a variety of material colors.
8. Human-Computer Interface:simple and easy to operate,more intelligent, easy operation, one button for professional sorting, remote, debugging, remote diagnosis, remote software upgrading.
Our service
--1)We can promise machine all details with high quality.
--2)The rice mill machine can be painted in different color according to customers’ favor.
--3)Any time customers has problem for using the machine can contact us, and also for large plant, we can send install video or technical workers go to guide how to install and how to operate.
--4)Guaranty time for two years.
Color sorter application
Color Sorting Effect

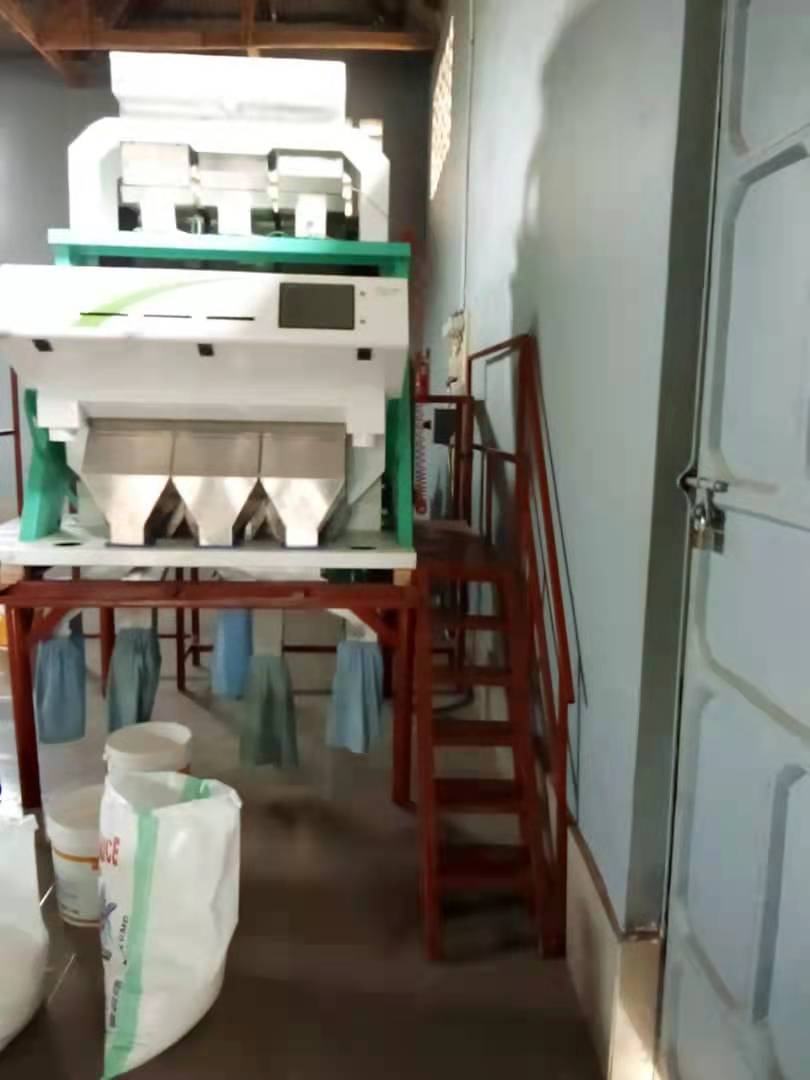

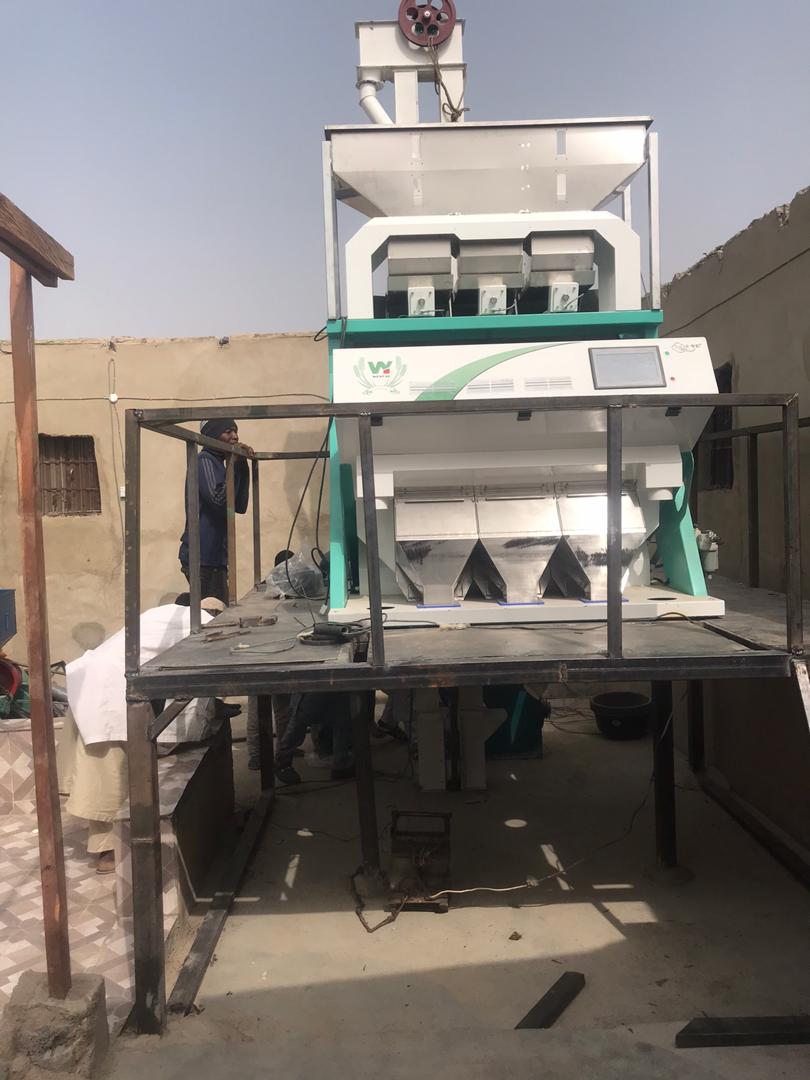

Our Custom's site
Welcome to coutact us
