Sunflower Seed Color Sorter Manufacturer Wheat Color Sorting Machine
| MODEL | WYCS7-448 |
| Chutes(channels) | 7(448) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥30:1 |
| Output(T/h) | ≥2 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 3.7 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 1800-3800 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 2874*1560*1860 |
| Weight(kgs) | 1350 |
| Package | Plywood case |
| Package Size mm | 3280*1680*2060 |

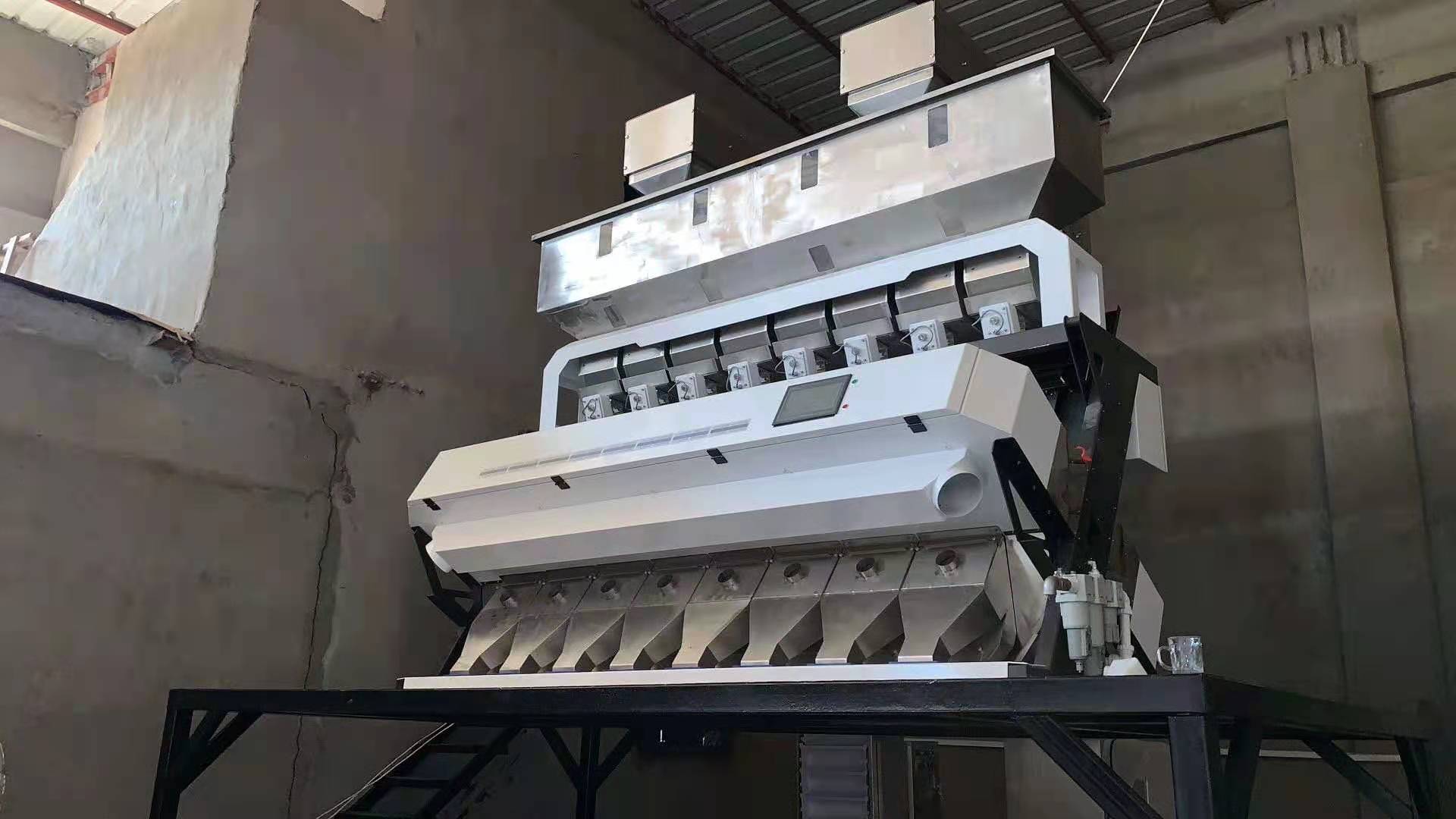

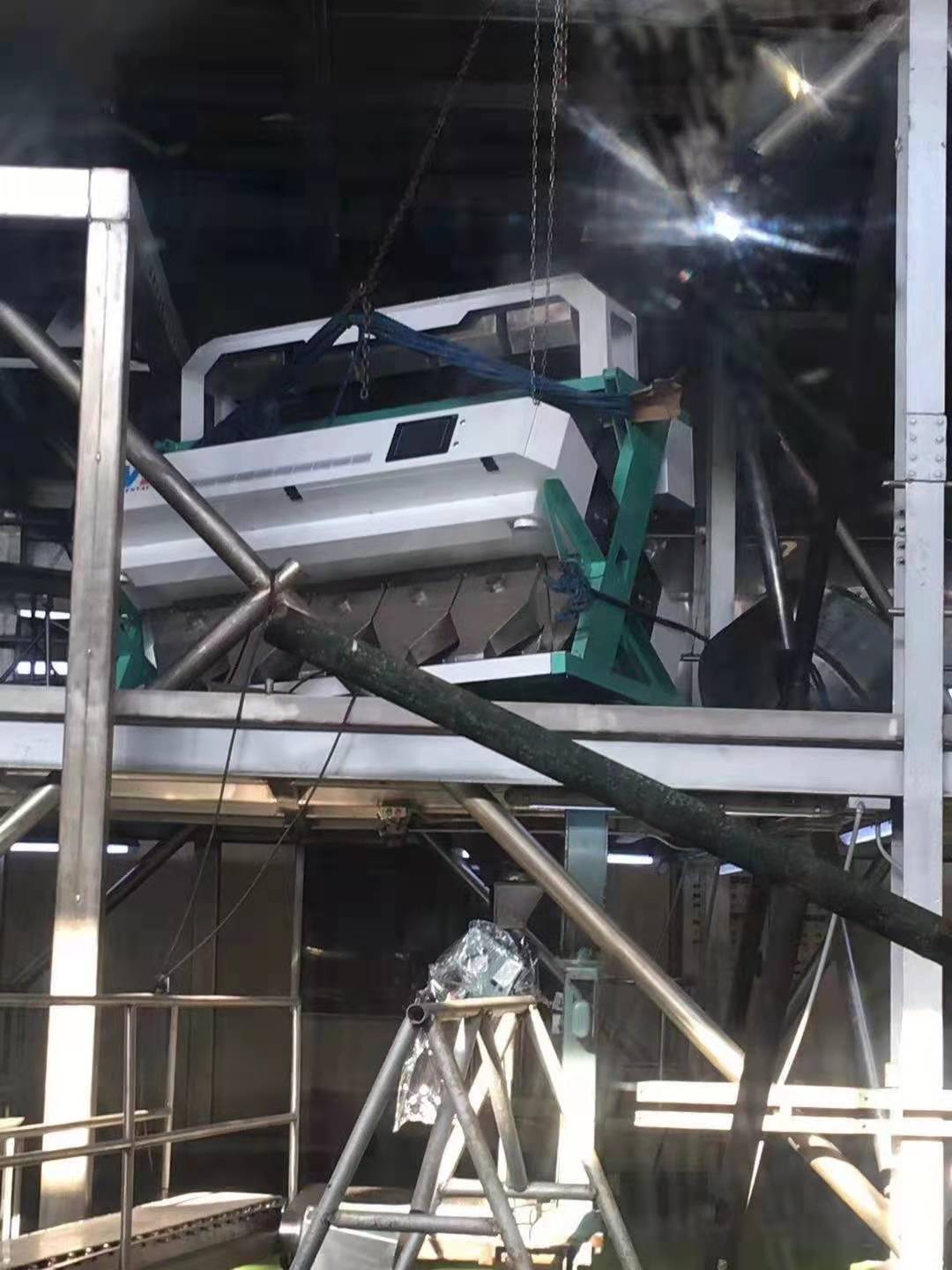

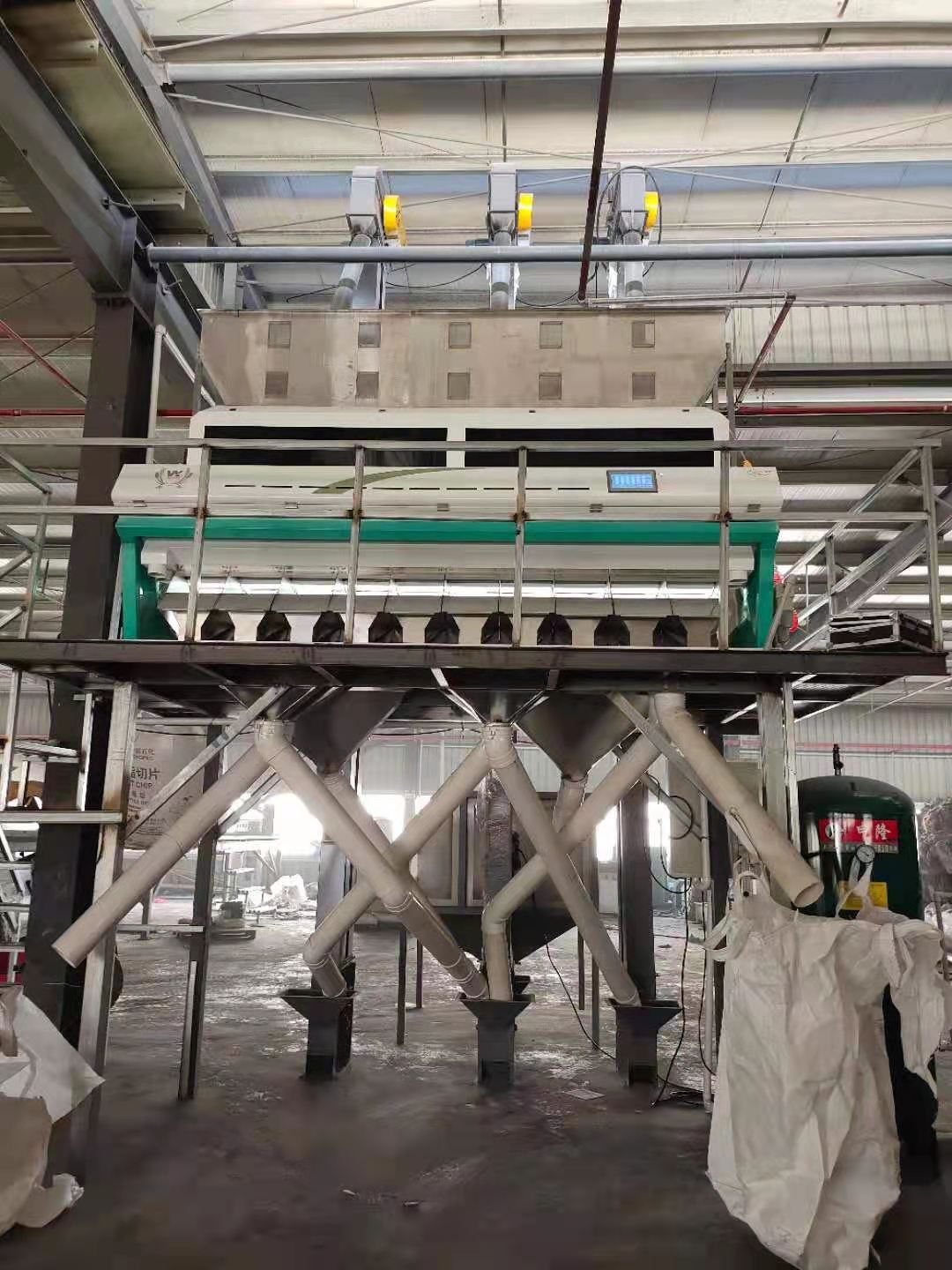

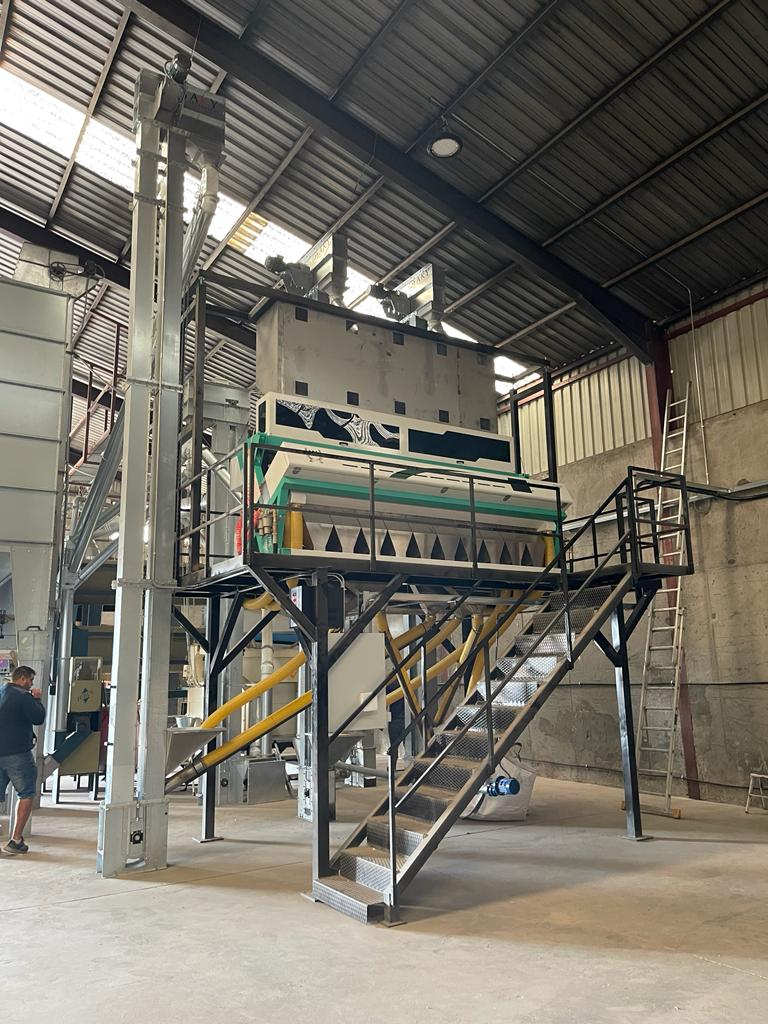

Customer's site :
COLOR SORTER also named color sorting machine, color sorter machine or optical sorting machine, it is according to the color differences of granular materials, using high-resolution CCD optical sensor to drive solenoid valve to sorting different granular materials.Wenyao Color Sorter has been widely used in many industry in the world. Such as agricultural products, food and mining industries, The most common use is sorting rice, wheat, corn, peanut, a variety of beans, seeds, tea, herbs, dried vegetables, recycled plastic, salt and ore etc The Optic Sorting System is a device for automatically sorting out the defective material by using the optoelectronic detecting technology according to the difference of the optical characteristics of the materials.
Depending on the types of sensors used and the software-driven intelligence of the image processing system, Optic sorters can recognize objects' color, size and shape and are able to compare objects to user-defined accept/reject criteria to identify and remove defective products and foreign material (FM) from the production line, or to separate product of different grades or types of materials.
Autonomous calculation, intelligent identification and intelligent sorting according to the sorting rules. Free choice, self-definition of the color, shape, size, and defect area of the material, one-key intelligent automatic control technology, automatic judgement and accurate matching with optimal sorting plan.
Real-time dynamic image calibration, which greatly improves machine stability and anti-interference performance.
Real-time remote control, operation and maintenance, software upgrades, diagnosis and resolution of light source, electric, machinery and proofreading problems, online product operation monitoring, data collection, online guidance. Maximizing the product application value for customers, and sharing the convenience and commercial value of big data era.
Multi-dimensional coordinate algorithm, intelligently identifying the subtle shape differences of materials, easily classifying materials of different shape categories such as size, length, fineness, round square, single and double, enabling simultaneous sorting on color and shape, and the finely divided materials, perfectly realizing the maximum value of quality selection.
Cereals:rice,millet,parboil rice,black rice,red rice,brown rice,thai rice,glutinous rice.
Grains:peanut, corn,sesame,oat.
Beans:red beens,kidney beans,coffee bean,black beans,mung beans.
Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.
Industries:plastic,electronic component,industrial salt,quartz sand
Others:tea,raisins,wolfberry,pepper.
